UTV1100(DIESEL)
UTV1100(DIESEL)
Share:
UTV1100(DIESEL)
  • VEHICLE
  • SPECIFICATION
Color
  • red
  • white
  • green
Detail


CV-tech Clutch


Powered by kubota

MODEL UTV1100
Size: L×W×H 3110×1543×1990 mm
Wheelbase 1930 mm
Ground clearance 240 mm
Dry weight 842 kg
Loading capacity 300 kg
Fuel Tank Capacity 35L
Max speed >50 km/h
Specification of tire Front: AT26X9-14
Rear: AT26X11-14
Brake system control model Front: Foot brake
Rear: Foot brake
Brake system model Front: Disk brake
Rear: Disk brake
Suspension type Front: Twin-A arms independent suspension
Rear: Twin-A arms independent suspension

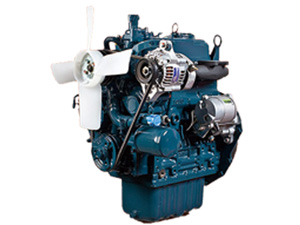

Engine type KUBOTA
Model 4 Cycle、Inline,water-cooled Diesel
Cylinder dimension 1123 cc
Bore and Stroke 78×78.4 mm
Rated power 18.5/3000 (kw/r/min)
Max torque 71.5/2200 (Nm/r/min)
Compression Ratio 24.0:1
Fuel system EFI
Start type Electric starting
Transmission Automatic L-H-N-R
Loading quantity(40'HQ) 11
